Hangzhou Huaxing Kechuang Holding Group Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm precision spindle bearings b7014-e-t-2rsd-p4s-ul hauv Suav teb. Raws li peb muaj cov cuab yeej tsim khoom thoob ntiaj teb thiab muaj peev xwm tsim muaj zog, peb zoo siab tos txais koj los yuav cov khoom lag luam zoo ntawm tus nqi sib tw los ntawm peb lub hoobkas.

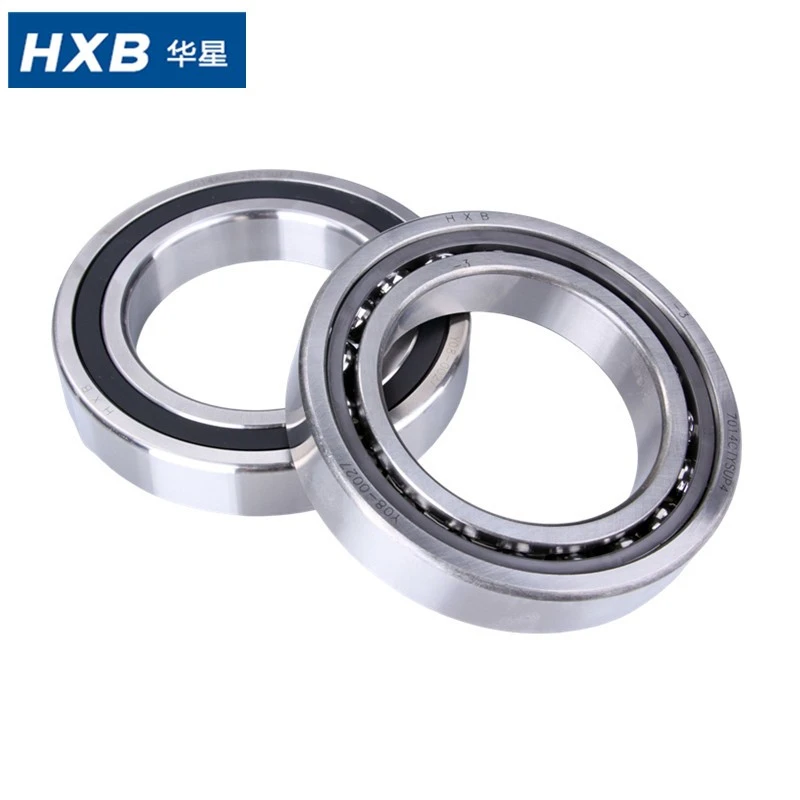

Precison Spindle Bearings-B7014-E-T-2RSD-P4S-UL
Kuj paub li S7014ACDGAP4A
Technical Data
|
Sab hauv Ø (mm): |
70 |
|
|
Sab nraud Ø (mm): |
110 |
|
|
Dav (mm): |
20 |
|
|
Contact Angle: |
25 degree |
|
|
Kab Kab: |
Ib Kab |
|
|
Foob: |
NBR |
|
|
Khoom siv nplhaib: |
GCr15, 100Cr6, SUJ2, X30 |
|
|
Rolling Element Khoom: |
Hlau |
|
|
Cage Khoom siv: |
Polyamide |
|
|
Qib kam rau ua: |
P4S |
|
|
Lubrication: |
Greased nrog Lubcon L252 |
|
|
Hom ntawm lubrication: |
Roj |
|
|
Khoom hnyav: |
0, 593kg |
| Hom | Qhov ntev | Abutment dimension | Load rating | Ceev tus nqi | Qhov hnyav | |||||||||
| mm | mm | N | r / min | (kg) | ||||||||||
| d | D | B | r (min) | r1 (min) | Da | da | ra (max) | ra 1 (max) | Cr | Cor | Noil | Nres | ||
| H71914C-2RZ | 70 | 100 | 16 | 1.0 | 0.3 | 93.4 | 78.5 | 0.6 | 0.3 | 20900 | 17800 | 26000 | 16000 | 0.346 |
| H71914AC-2RZ | 100 | 16 | 1.0 | 0.3 | 93.4 | 78.5 | 0.6 | 0.3 | 19700 | 16900 | 20000 | 13000 | 0.346 | |
| H7014C-2RZ | 110 | 20 | 1.1 | 1.0 | 100.8 | 81.1 | 1.1 | 0.6 | 24100 | 21400 | 24000 | 15000 | 0.593 | |
| H7014AC-2RZ | 110 | 20 | 1.1 | 1.0 | 100.8 | 81.1 | 1.1 | 0.6 | 22600 | 20100 | 20000 | 13000 | 0.593 |
Daim ntawv thov
Lub 7014 series (7014C / 7014AC / B7014) siab -precision angular hu rau bearings feature 70 hli bore loj, loj load peev xwm thiab zoo heev high - ceev thermal stability. Lawv tau siv dav hauvnruab nrab-loj siab-lub zog CNC spindles, sib tsoo spindles thiab industrial siab-ceev spindles. Hauv qab no yog cov khoom siv tau zoo tshaj plaws spindle qauv txheeb los ntawm cov khoom siv:
1. CNC Milling & Machining Center Spindles
BT40 / BT50 siab- nrawm machining chaw spindles, ntsug machining chaw (VMC) spindle units, kab rov tav machining chaw (HMC) ua-nyob rau hauv lub cev muaj zog spindles, pwm siab-ceev milling spindles, hnyav- lub luag hauj lwm txiav CNC spindle sib dhos. Haum rau 8000-12000rpm ntev - voj voog siab -load processing scenarios.
2. High-Precision Sib Tsoo Tshuab Spindles
Internal sib tsoo tshuab siab- zaus spindles, sab nraud cylindrical sib tsoo spindles, cuab yeej sib tsoo tshuab spindles, nto sib tsoo tshuab precision teb spindle units. Lub 7014 bearing's ultra- kev ua haujlwm qis qis kom ntseeg tau tias ultra- sib tsoo nto tiav thiab qhov tseeb qhov tseeb.
3. Drilling & Tapping Tshuab Spindles
Siab -kev ceev drilling thiab tapping tshuab servo spindles, multi-axis drilling spindle units, automated ntau lawm kab mob siab rau siab - ceev teb spindles. Nws hloov mus rau nquag pib- nres thiab tsis tu ncua siab - qhov kub thiab txias ua haujlwm nrog kev ruaj khov los tiv thaiv- qaug zog ua haujlwm.
4. Industrial High-Frequency Built-In Motor Spindles
1.5kW–7.5kW siab- lub zog tsim- hauv lub cev muaj zog spindles, dej- txias siab- ceev spindle units rau hlau ua, roj- cua lubrication industrial spindle systems. Haum rau 7014 series 'siab-kub tsis kam thiab siab{10}}ceev dynamic stability.
5. Cov cuab yeej tshwj xeeb Precision Spindles
Precision teb lub ntsiab shafts, muaj neeg hlau sib koom siab -load rotary units, siab - zog compressor teb spindles, loj automated precision xov khoom spindles.
6. Matched Precision Bearing Configuration nta
7014 series bearings feem ntau configured nrog DBL rov qab - rau - rov qab khub thiab DT tandem khub rau nruab nrab thiab siab rigidity spindle systems. Nrog kev hloov kho siab - kub clearance thiab tshav kub- resistant accessories, lawv daws thermal expansion jitter thiab precision attenuation teeb meem ntawm loj- tho qhov ntxaiv bearings, ua hauj lwm raws li cov tub ntxhais txawj tej yam ntxiv hloov rau nruab nrab - loj siab- ceev tshuab cuab yeej spindles.
Qhov zoo
HXB tau tsim muaj nyob rau hauv 1995, nrog ze li ntawm30 xyoontawm kev mob siab rau kev txhim kho, HXB tam sim no ua haujlwm 6cov koom haum.
∗ 2 siab -tech R&D chaw
∗ 2 cov chaw tsim khoom niaj hnub- Hangzhou Yijia Precision Bearing Co., Ltd. thiab Zhejiang Ruiyang Bearing Technology Co., Ltd.
∗ Txhawb los ntawm advanceddigital MES thiab SPC tswj systems
∗ IATF16949: 2016, ISO9001: 2015 thiab ISO14001ntawv pov thawj
∗ High- cov khoom siv kawg thiab cov khoom siv siab - zoo
Daim ntawv pov thawj
Exhibition
FAQ
Q1: Koj lub Hoobkas tau tsim cov kabmob ntev npaum li cas?A: Peb muaj ntau tshaj 30 xyoo ntawm kev tsim cov kabmob kev tsim khoom, pib los ntawm kev sib sib zog nqus groove pob bearing ntau lawm thiab nthuav mus rau siab -precision thiab tshiab zog bearing teb.
Q2: Yuav ua li cas koj lav bearing zoo sib xws?
A: Peb siv tag nrho - txheej txheem tswj kev ua tau zoo, suav nrog kev tshuaj xyuas cov khoom xa tuaj, hauv - txheej txheem kev soj ntsuam qhov ntev, ntsuas suab nrov, kuaj xyuas qhov tseeb thiab qhov kawg batch sampling tshuaj xyuas.
Q3: Koj cov bearings puas tuaj yeem ua haujlwm hauv qhov kub thiab txias ib puag ncig?
A: Peb cov bearings txhawb kev hloov kho qhov kub thiab txias. Nrog tshwj xeeb cua sov- tiv taus roj thiab cov khoom siv ruaj khov, lawv ua haujlwm ruaj khov hauv ob qho tib si siab - cua sov thiab qis - qhov kub thiab txias ua haujlwm.
Q4: Koj puas muab cov nqi qis rau kev txiav txim ntau?
A: Peb muab cov nqi sib tw lag luam wholesale rau kev yuav khoom ntau. Thov xa email tuaj rau peb ntawm koj qhov kev txiav txim kom muaj nuj nqis rau kev cai hais.
Q5: Yuav ua li cas yog tias kuv tau txais cov khoom puas lawm?
A: Thov xa cov duab meej ntawm cov khoom puas thiab ntim hauv 48 teev tom qab tau txais. Peb yuav muab cov khoom xa rov qab dawb lossis tag nrho cov nyiaj rov qab yam tsis tau xa rov qab.
